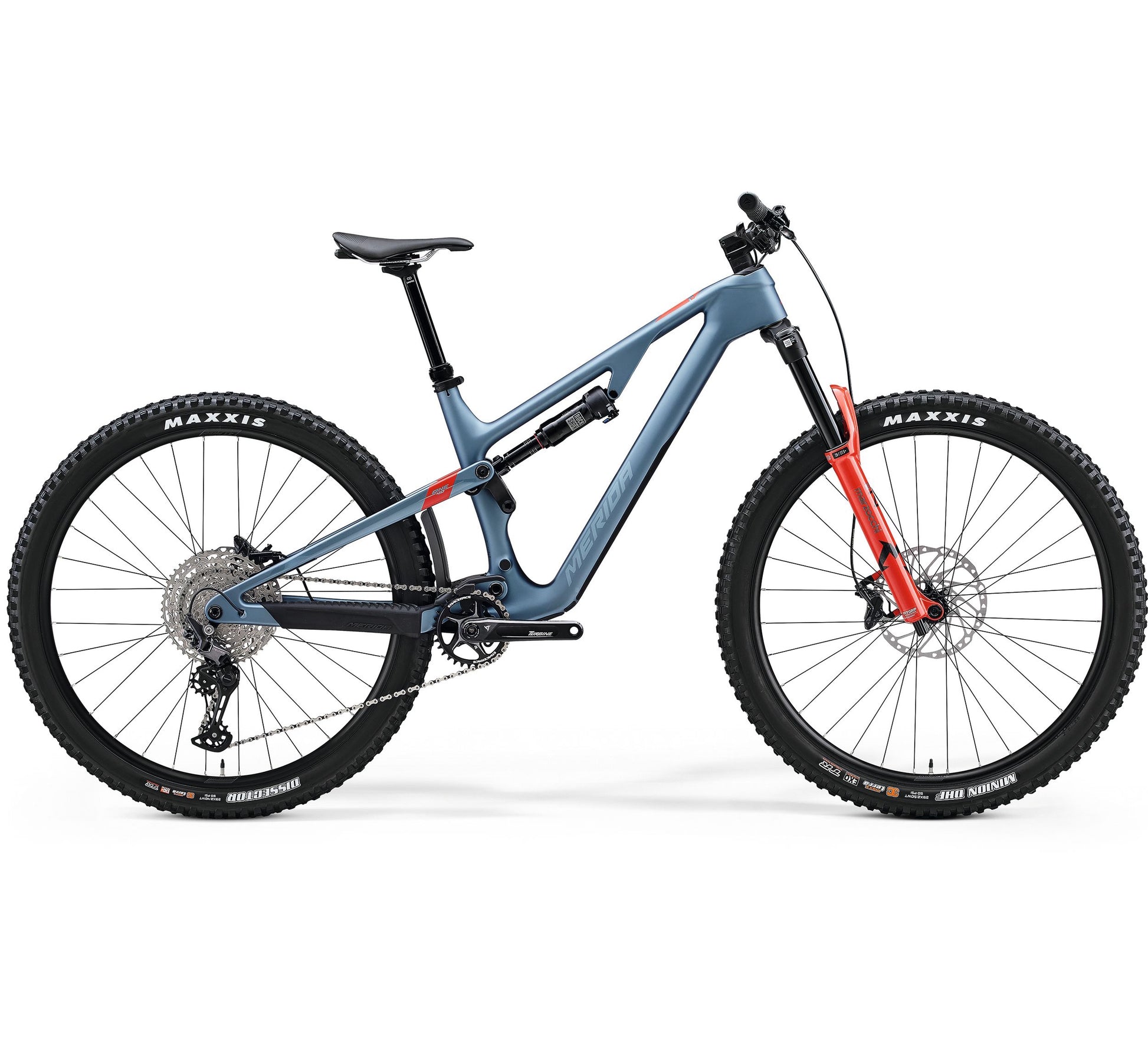

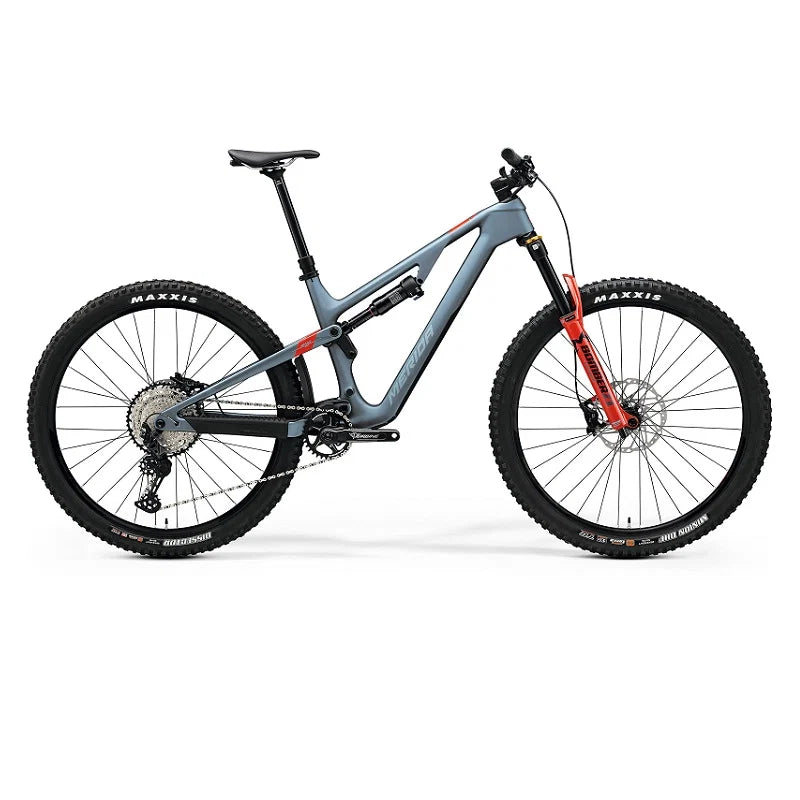

MERIDA ONE-FORTY 6000

Our top-level carbon fibre frame paired with hardworking, high-value kit to deliver cutting edge geometry and performance that revolutionises what you expect from a trail bike.

FRAME
ONE-FORTY CF4 III
143mm suspension travel 29"
material: carbon
29x2.5" max. wheelsize
148x12mm axle standard
BSA bottom bracket standard

FORK
Marzocchi Z1
Air
150mm suspension travel
Tapered
44mm fork offset
29x2.6" max. wheelsize

SHOCK
Rock Shox Deluxe Select+
lockout

BRAKES
Shimano SLX M7120

ROTORS
Shimano RT64

HEADSET
MERIDA 8151

HANDLEBAR
MERIDA TEAM TR

HANDLEBAR STEM
MERIDA EXPERT eTRII

GRIP
MERIDA EXPERT EC

DERAILLEUR (R)
Shimano SLX M7100 Shadow+

SHIFTERS
Shimano SL -MT500-IL / Shimano XT

SEAT POST
MERIDA TEAM TR

SEAT CLAMP
MERIDA EXPERT

SADDLE
MERIDA EXPERT SL

CHAIN
KMC X12

CHAINGUARD
MERIDA EXPERT TR ISCG05

CRANK
Race Face Turbine
32 teeth
170 mm-S, 175 mm-M up

FREEWHEEL
Shimano SLX
10-51 teeth
12 speed

BOTTOM BRACKET
BB, BSA 73mm– Ø30mm, Ext. Seal

HUBS
Shimano SLX

RIM
MERIDA EXPERT TR
29mm inner width
material: aluminium
Tubeless ready (tubeless tape and valves not included)

TYRE FRONT
Maxxis Minion DHF
29x2.5"
fold
TR EXO 3C MaxxTera

TYRE REAR
Maxxis Dissector
29x2.4"
fold
TR EXO+ MaxxTerra
AXLES MERIDA EXPERT TR

SPOKES
Double Butted Black stainless
